Specs & Information
- Model

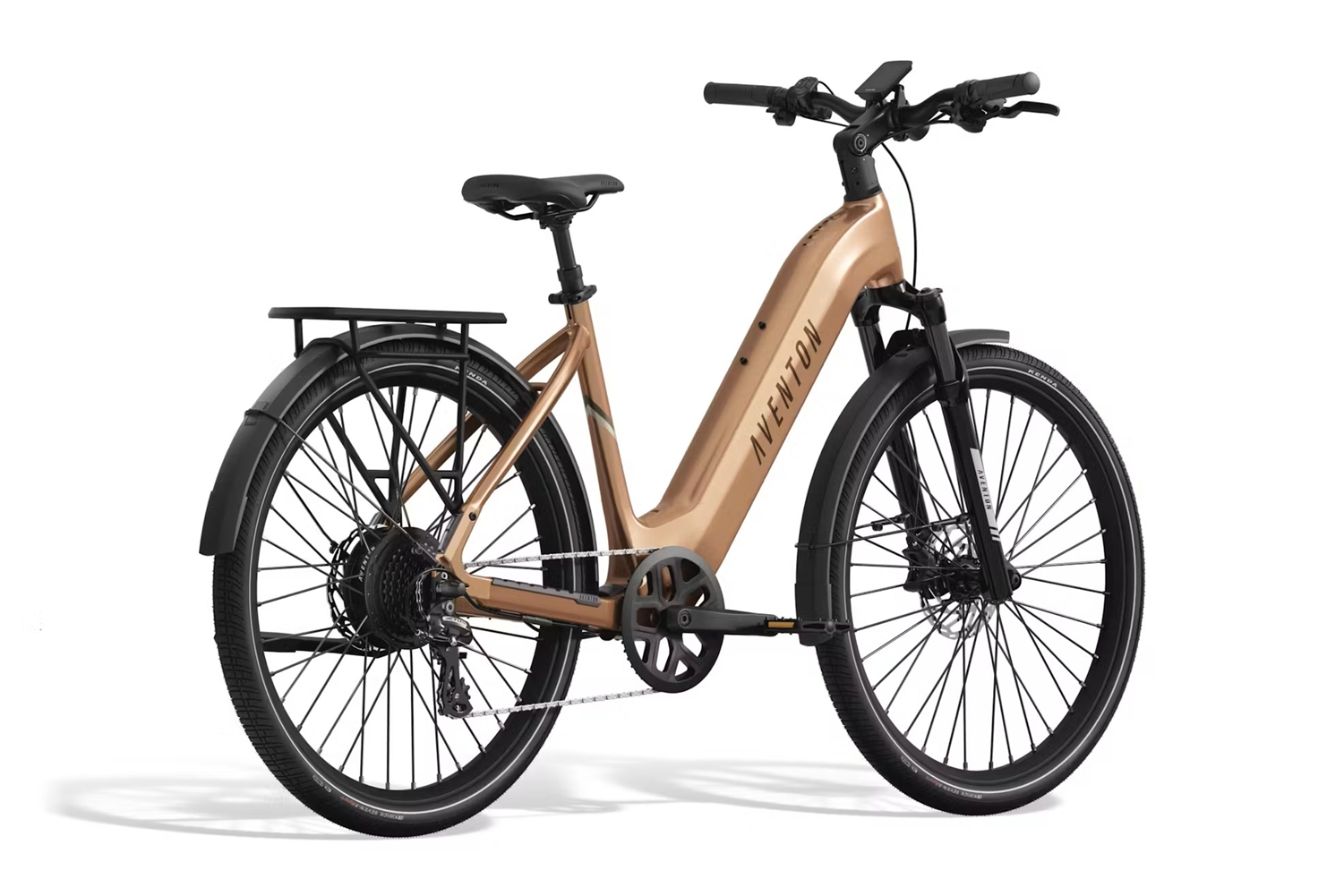

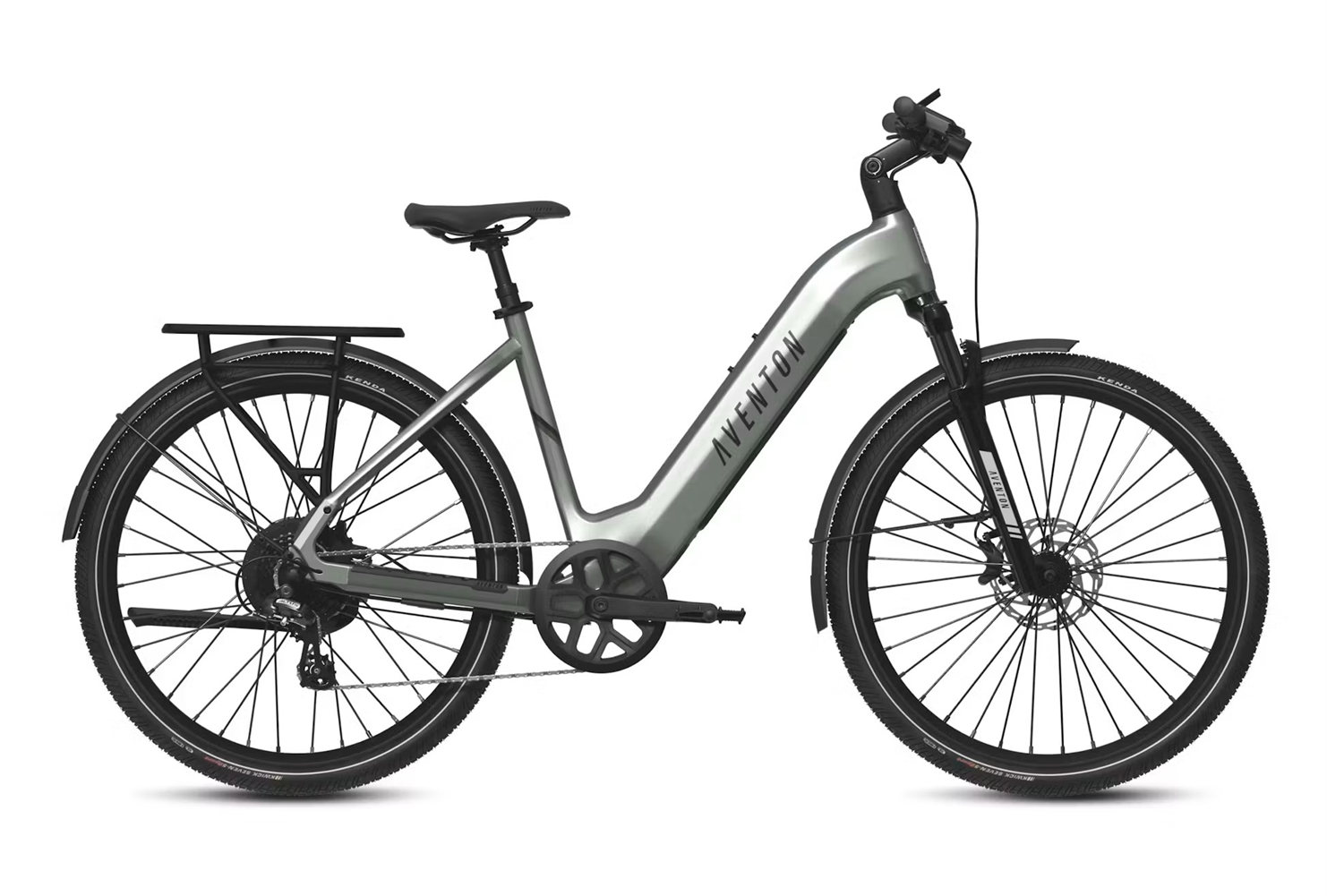

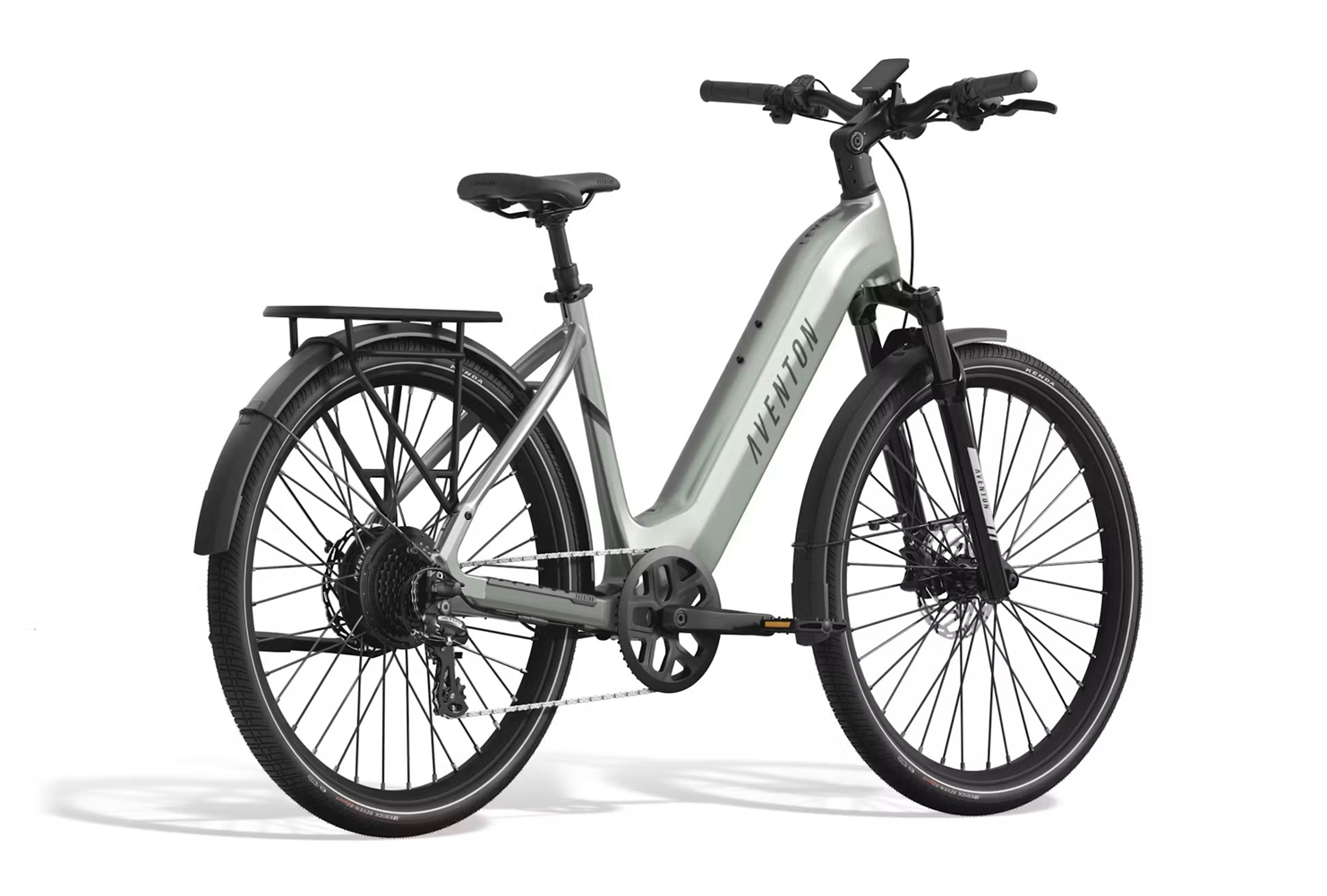

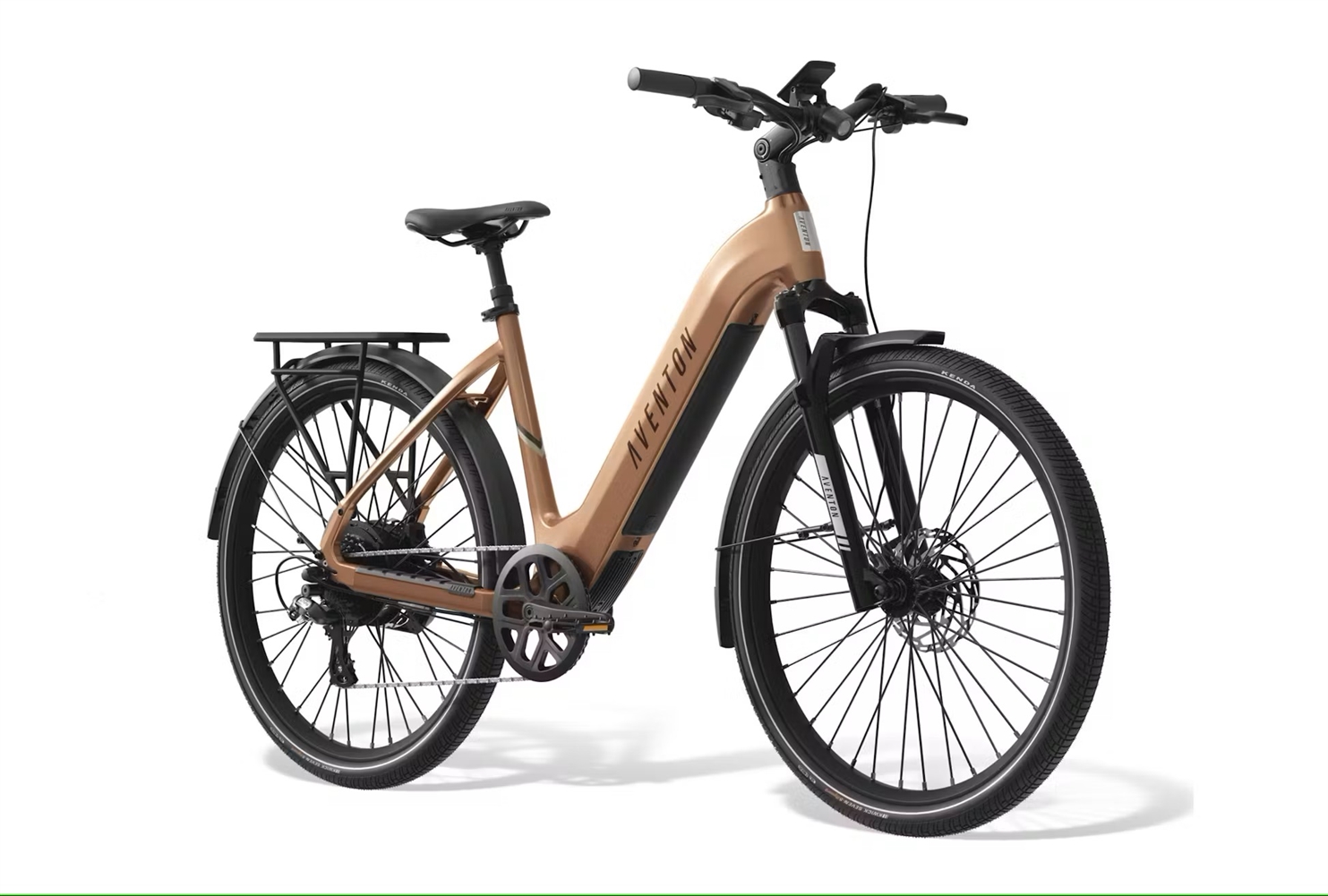

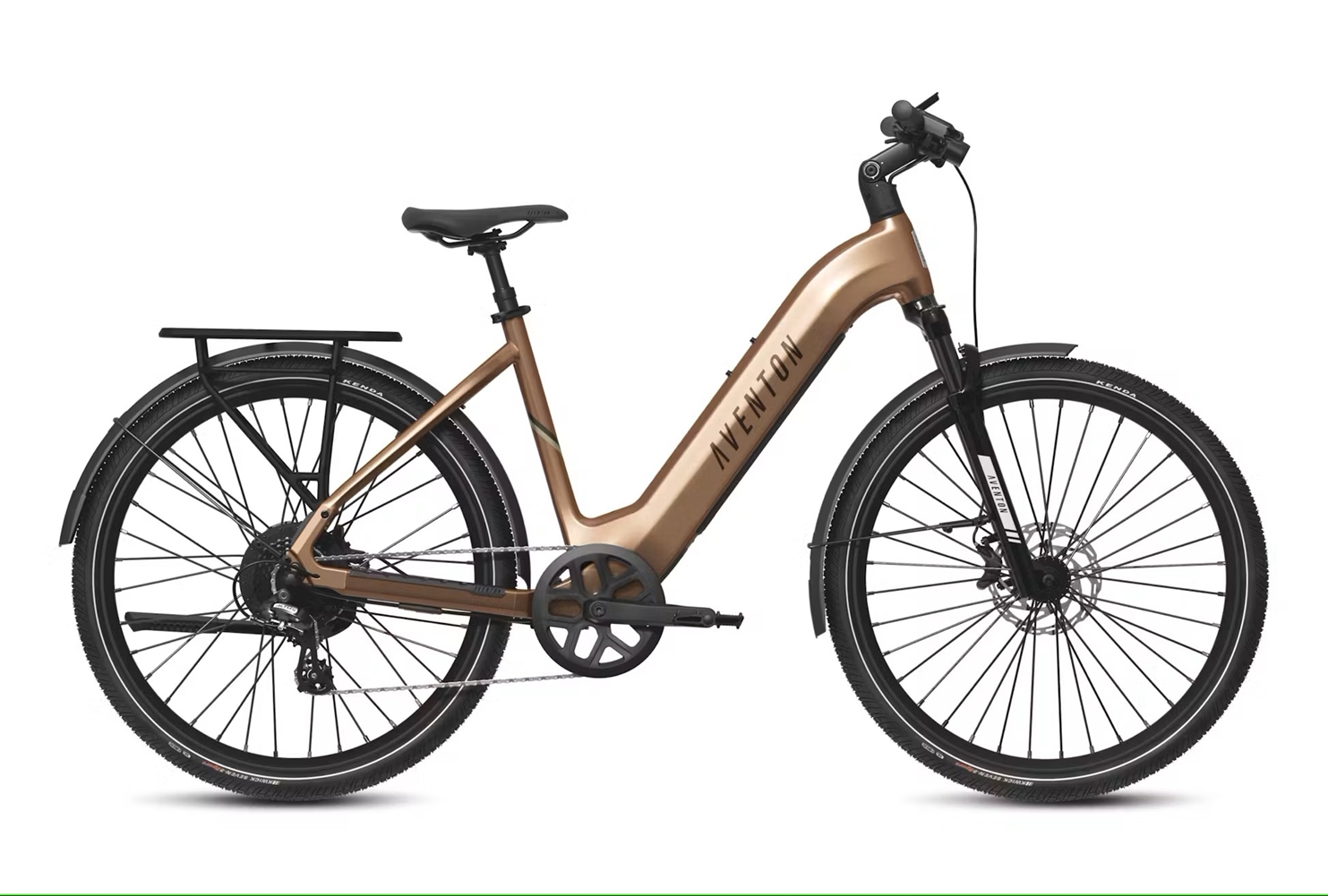

- Level 3 Step Through Ebike
- Weight
- 67lbs
- Total Weight Limit
- 300 lbs
- Box Size
- 61"x13"x34"
- Rider Height
- 4'11" - 6'1"
- Ebike Class
- Class 2 Ebike
- Water Resistance
- IPX6
- Range
- Up to 70 Miles
- Battery Safety Certifications
- Certified to UL 2271
- Safety Certifications
- UL Safety Certified
UL 2849
- Ideal Use
- Commuting
- Pedal Assist
- 3 Levels (with Ride Tune Customization)
Frameset- Frame
- 6061 Aluminum, Gravity Cast Front Triangle
- Fork
- Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
- Rear Spacing
- 142mm
- Fork Spacing
- 110mm
- Frame Style
- Step-Through
Wheelset- Front Wheel
- 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
- Rear Wheel
- 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
- Tires
- Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
Ebike System- Motor
- 36V, 500W (sustained), 864W (peak)
- Motor Torque
- 60Nm
- Display
- Aventon BC280
- Battery
- Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
- Battery Weight
- 8.7lbs
- Controller
- 36V, 24A
- Throttle
- Aventon LH Handlebar Mounted
- Sensors
- Double Sided Bottom Bracket Torque Sensor
- Charger
- 36V Output: 42V/ 4A
- Charging time from 0% to 100%
- 5 hours
- Lights
- Front and rear lights integrated
- Speed
- Class 2
Brakes- Front Brake
- Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Rear Brake
- Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Front Brake Rotor
- Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
- Rear Brake Rotor
- Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
Drivetrain- Rear Derailleur
- Shimano Altus RD-M310
- Shifter
- Shimano 8 Speed Trigger SL-M315-8R
- Chain
- 7/8 speed 120L
- Cassette
- 12-32T / 8 Speed Shimano CS HG200-8
- Chainring
- 48T
- Crankset
- 3pc, 170mm crank arm
- Bottom Bracket
- Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
- Pedals
- 9/16" Composite Platform
Cockpit- Saddle
- Aventon Saddle
- Seatpost
- 30.9mm Aventon Suspension Seatpost with 50mm travel
- Seatpost Clamp
- 34.9mm
- Handlebars
- Aluminum 31.8mm, 680mm
- Grips
- Aventon Lock on grips
- Headset
- Sealed Bearing Headset
Included Accessories- Rear Rack Weight Limit
- 60lbs
Technical Overview- The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
|
|
|
|
|
|
|
