Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone features 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails. Available with either 27.5" or 29" wheels, depending on frame size, ensuring the perfect balance of playfulness and efficiency.

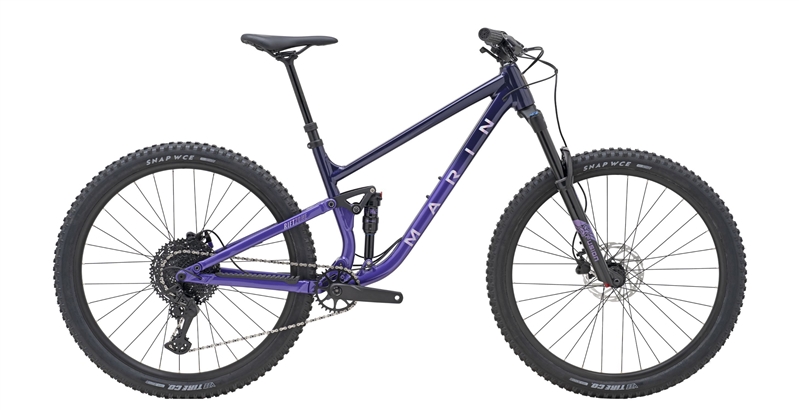

The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
 | XS | S | M (27.5) | M (29) | L | XL |
|---|
| A Stack | 569.1 | 600.7 | 605.2 | 637.3 | 637.3 | 641.8 | | B Reach | 415 | 430 | 450 | 460 | 485 | 515 | | C Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | | D Headtube Length | 115 | 120 | 125 | 115 | 125 | 130 | | E Seattube Angle | 77° | 77° | 77° | 77° | 77° | 77° | | F Seattube Length | 330 | 390 | 400 | 400 | 425 | 430 | | G Toptube Effective | 552.6 | 568.7 | 589.7 | 605 | 632.1 | 663.2 | | H BB Height | 339 | 339 | 339 | 343 | 343 | 343 | | I BB Drop | 35 | 35 | 35 | 35 | 35 | 35 | | J Chainstay | 430 | 430 | 430 | 430 | 430 | 430 | | K Wheelbase | 1147.8 | 1164.8 | 1186.9 | 1205.1 | 1234.4 | 1266.3 | | L Standover Height | 661.7 | 677.8 | 687.8 | 691.2 | 701.7 | 700.5 | | M Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 | | Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 | | Handlebar Width | 780 | 780 | 780 | 780 | 780 | 780 | | Stem Length | 35 | 35 | 35 | 35 | 35 | 35 | | Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
All lengths in millimeters
FRAMESeries 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs FORKX-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset SHOCKX-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom RIMSMarin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible HUB REARJoytech D142TSE-B5, 141QR, 6-Bolt HUB FRONTJoytech D041-B15, 110x15mm, 6-Bolt SPOKES14g Black Stainless Steel TIRESVee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible DERAILLEUR REARTektro RD-5100-L, Long Cage, Clutch SHIFT LEVERTektro, SL M5100-11R, 11-Speed CRANKSETMarin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing BOTTOM BRACKETExternal Sealed Cartridge Bearing CHAINKMC X-11 Silver and Black CASSETTETektro CS-M5100-11, 11-Speed, 11-50T BRAKES FRONTTektro HD-M280 Hydraulic, 180mm Rotor BRAKES REARTektro HD-M280 Hydraulic, 180mm Rotor BRAKE LEVERSTektro HD-M280 HANDLEBARMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back STEMMarin 3D Forged Alloy, 35mm GRIPSMarin MTN, Closed End HEADSETFSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” SEATPOSTX-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm SADDLEMarin Speed Concept EXTRASClosed 9-12 Thru-Axle Bolt On System
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- SERIES 3 ALUMINUMIM FRAME
Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform. - Rift Zone Alloy MultiTrac suspension detail.
MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 130mm rear travel on all Rift Zone models. - Marin ambassador Brendan Carberry, manualling on a Rift Zone 1.
MODERN TRAIL GEOMETRY
Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike. - Rift Zone alloy lower cable/hose port.
INTERNAL ROUTING
Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up. - Marin Rift Zone derailleur hanger/dropout detail.
SRAM DIRECT MOUNT COMPATIBLE
Rift Zone models utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame as well as allow for T-type drivetrains. - Marin Rift Zone chainstay/seatstay detail.
ENHANCED CHAINSTAY/SEATSTAY PROTECTION
Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.
|
|
|
|
|
|
|
