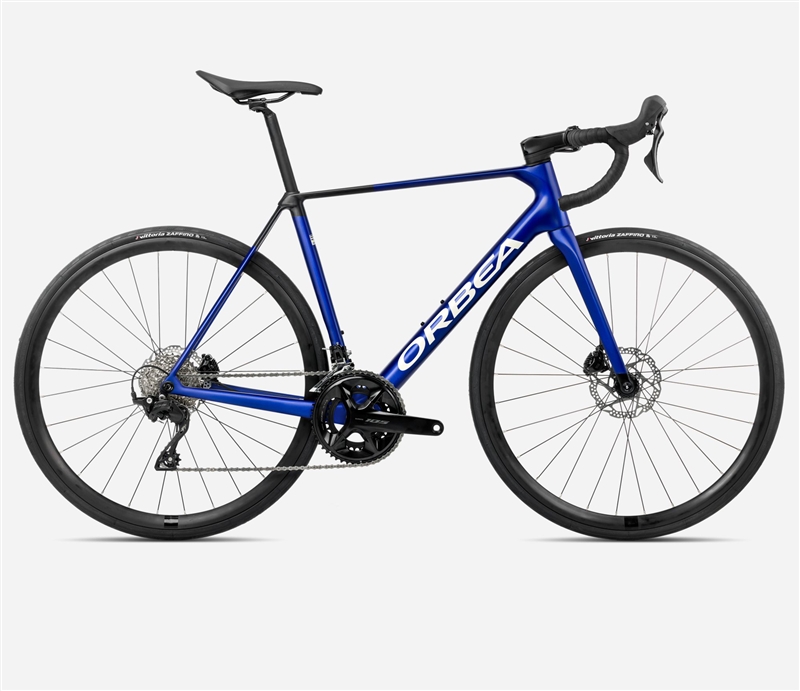

Orca is our lightweight carbon climbing machine, made for those seeking the perfect partner with which to attack every mountain pass.
PRAISE THE LIGHT
The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.
SIZE TUNED STIFFNESS
We alter the carbon layup for each frame size to ensure every Orca feels the same. It is a lot more work, but these are the small details you notice when you ride.
POWERSPINE
The lower spine of the frame handles the large majority of torsional and lateral loads.
ICR PLUS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
32MM TIRE CLEARANCE
Modern road riders have discovered the advantages of bigger tires on rougher surfaces.
FramesetFrameOrbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing. ForkOrbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1. Steerer tubeFSA 1-1/2" Integrated Aluminium Cup DrivetrainCassetteShimano 105 R7100 11-34t 12-Speed CockpitHandlebarOC Road Performance RP31, Reach 80, Drop 125 StemOC Road Performance RP23, -5º BrakesBrakesShimano R7170 Hydraulic Disc WheelsWheelsAlloy, Tubeless, 700c, 19c, 28H TyresContinental Grand Prix Foldable 700x28c Front Wheel AxleOrbea Thru Axle 12x100mm M12x2 P1 Hollow Rear Wheel AxleOrbea Thru Axle 12x142mm M12x2 P1 Hollow ComponentsSeatpostSP 0.2 Carbon, 27.2mm, Setback 20
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
1Seat Tube (C-T) 440 460 480 500 520 540 570 2Top Tube (EFF) 510,3 522,7 535,9 548,5 560,4 576,1 590 3Head Tube 110,5 118,2 134,6 152,9 173,1 191,2 218,3 4Chainstay 408 408 408 408 408 408 408 6BB Height 268,5 268,5 268,5 270,5 270,5 270,5 270,5 7Wheelbase 971,8 975,4 980 981,2 991,4 1001,9 1015,6 8Head Angle 71 71,5 72,2 72,8 73 73,2 73,2 9Seat Angle 74,5 74 73,7 73,5 73,5 73,2 73,2 11Standover 736,5 748,5 767,5 788,5 808,5 826,5 852,5 12Reach 370 375 380 385 391 398 404 13Stack 506 515 533 552 572 590 616 14Fork Length 365 365 365 365 365 365 365 15Trail 66,0 62,8 58,4 59,9 58,7 57,4 57,4
|
|
|
|
|
|
|
