Boundless
Freedom lies in uncharted paths, where vastness is the challenge and each pedal stroke takes you deeper into a labyrinth of possibilities. It’s not just a ride; it’s an invitation to explore nature’s endless horizons.
Ample 50C Tyre Clearance
Ample tyre clearance for up to 50C or 45C with mudguards, wide enough for traction and control through all your adventures.
Fully Loaded Mounting Points
Terra has multiple secure mounting points in the seat tube, top tube, downtube, and on the fork for jiggle-free bikepacking bags and bottle cages.
Drivetrain Compatibility
Compatible with single or double chainsets to ensure the best performance no matter where you ride.
UDH Compatible
Completely compatible with the Universal Derailleur Hanger, no worries if you find yourself in a mid-adventure pinch.
Lockr XXL
The updated frame storage offers an additional 35% volume. Enough space to store whatever you need- clothes, tools, or your favorite adventure fuel.

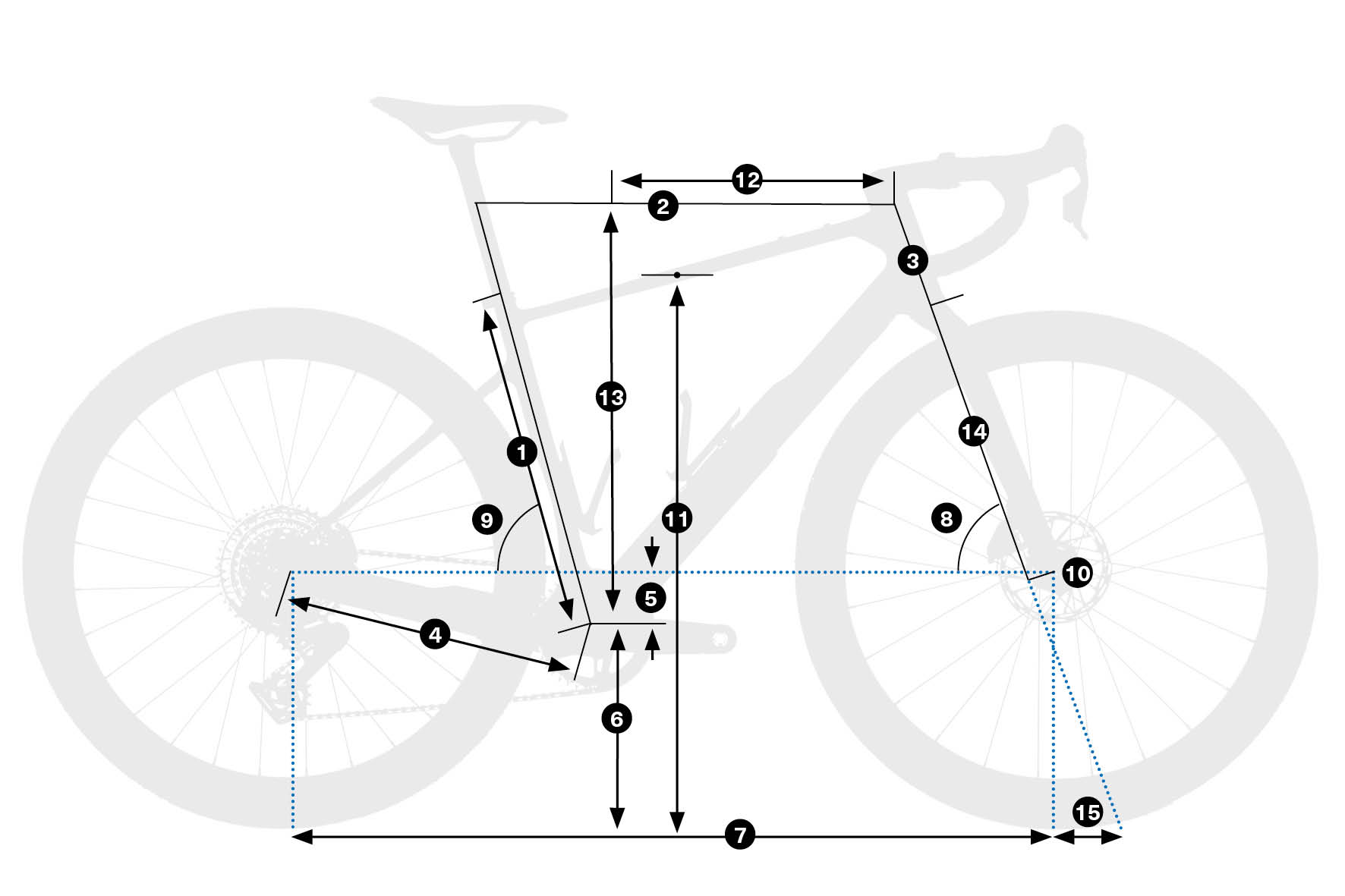

Geometry chart by size| Concept | XS | S | M | L | XL | XXL |
|---|
1Seat Tube (C-T) | 410 | 440 | 470 | 505 | 540 | 575 |
|---|
2Top Tube (EFF) | 535 | 547 | 561 | 573 | 585 | 596 |
|---|
3Head Tube | 110 | 132,5 | 153,5 | 175 | 198 | 218 |
|---|
4Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
|---|
5 | 80 | 80 | 80 | 80 | 80 | 80 |
|---|
6BB Height | 261 | 261 | 261 | 261 | 261 | 261 |
|---|
7Wheelbase | 1031 | 1041 | 1052 | 1061 | 1072 | 1081 |
|---|
8Head Angle | 69 | 69,5 | 70 | 70,5 | 70,8 | 71 |
|---|
9Seat Angle | 74º | 74º | 74º | 74º | 74º | 74º |
|---|
10Rake | 45 | 45 | 45 | 45 | 45 | 45 |
|---|
11Standover | 690 | 717 | 743 | 772 | 801 | 828 |
|---|
12Reach | 386 | 392 | 400 | 406 | 412 | 417 |
|---|
13Stack | 535 | 558 | 580 | 602 | 625 | 645 |
|---|
14Fork Length | 395 | 395 | 395 | 395 | 395 | 395 |
|---|
15Trail | 82,7 | 79,5 | 76,2 | 73 | 71,4 | 69,8 |
|---|
FramesetForkOrbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.FrameOrbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.HeadsetFSA 1-1/2" Integrated Aluminium CupDrivetrainCranksetShimano GRX RX610 30x46tShiftersShimano GRX RX610CassetteShimano HG710 11-36t 12-SpeedRear derailleurShimano GRX RX820Front derailleurShimano GRX RX820ChainShimano M6100CockpitHandlebarOC Gravel GR31, Reach 70, Drop 110StemOC Road Performance RP23, -5ºBrakesBrakesShimano RX410 Hydraulic discBrakes ConfigurationN/AWheelsWheelsAlloy, Tubeless, 700c, 21cTyresVittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45cOrbea Thru Axle 12x100mm M12xP1 HollowRear Wheel AxleOrbea Thru Axle 12x142mm M12xP1 Solid inner threadedComponentsSaddleFizik Terra Argo X7 Aluminium Rail 150mmSeatpostSP 0.2 Carbon, 27.2mm, Setback 20AccessoriesMudguardN/AHandlebar TapeOrbea Anti-Slippery/Shock ProofStorageAccesories Containers
|
|
|
 |
|
 |
|
