Pinarello Grevil F3 SRAM Apex XPLR Gravel Bike from BikeBling.com

Home > Bikes >

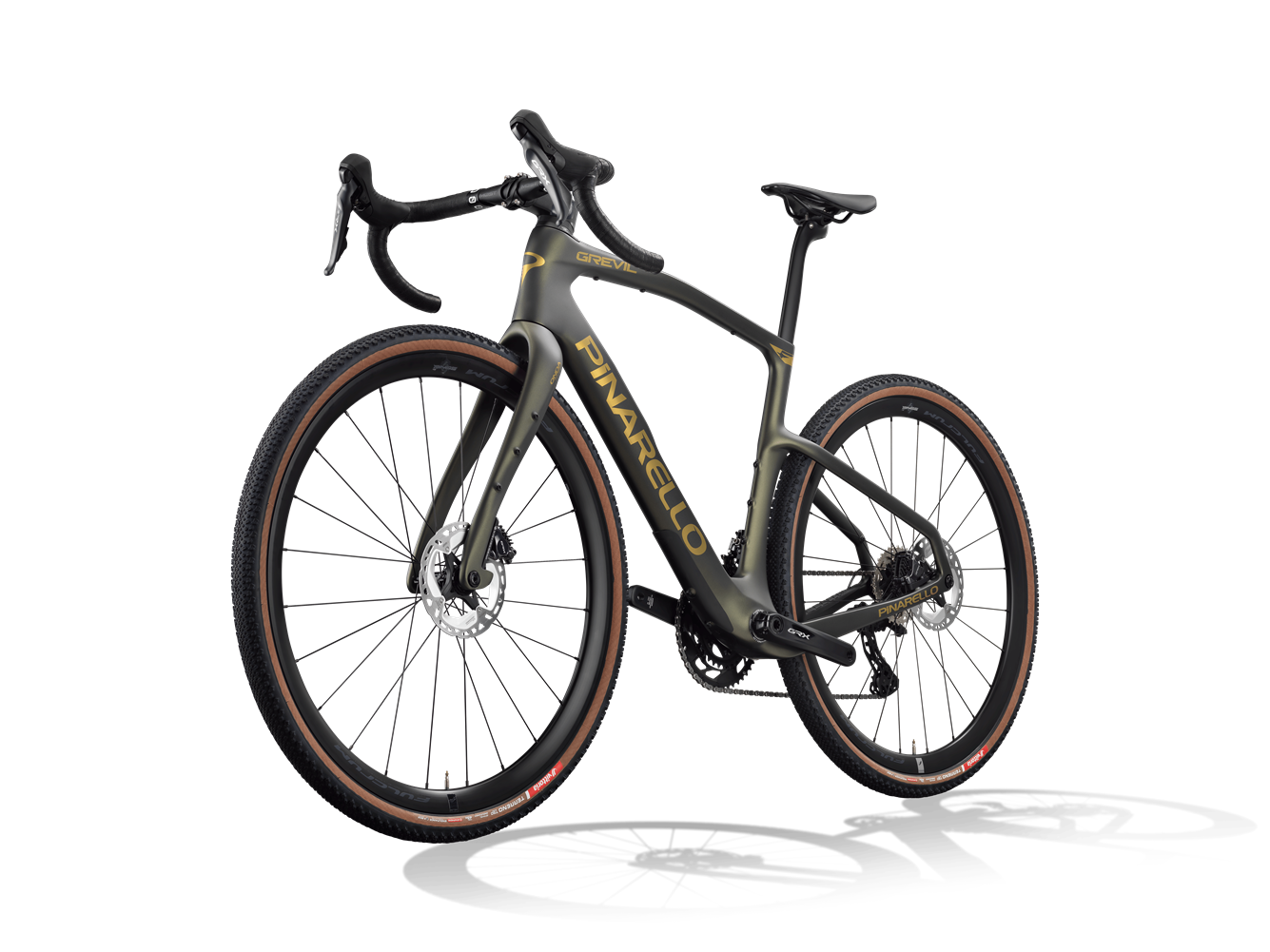

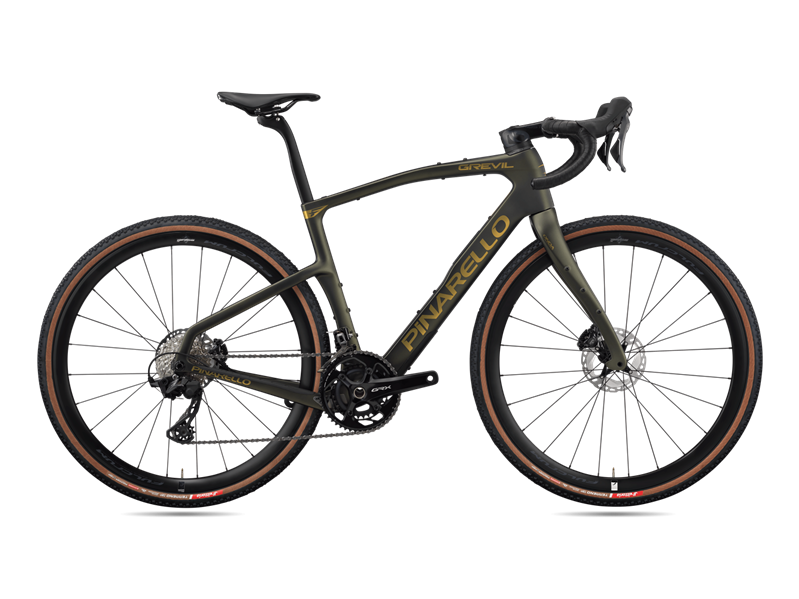

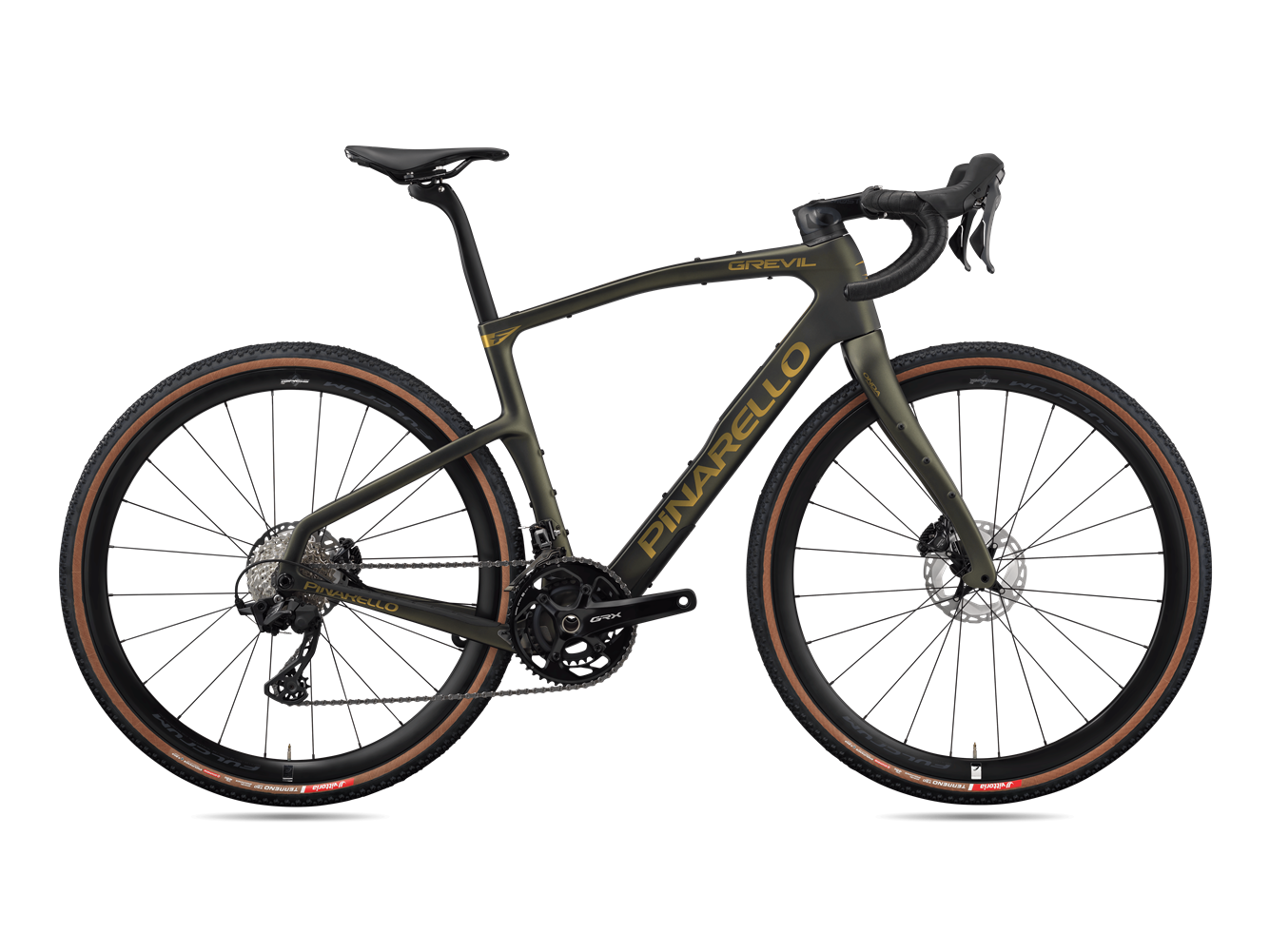

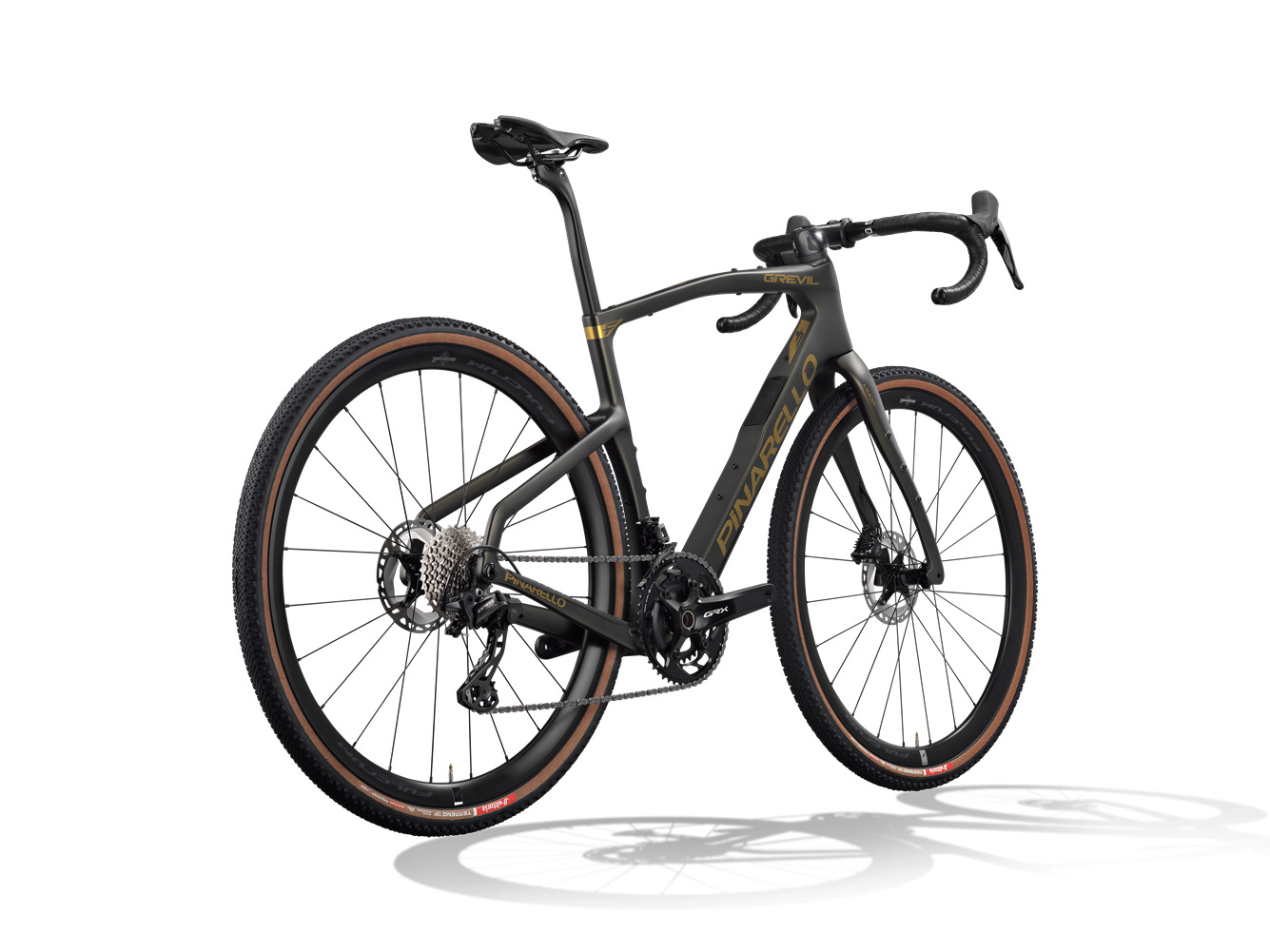

Pinarello Grevil F3 SRAM Apex XPLR Gravel Bike 2026

Image for color options only. See specs below

Additional Photos:

List Price: $3,700.00

Our Price: $3,499.99

You save $200.01

Product Code: PINARELLO26-GREVILF3-APEX

Choose Your Color

Click to view another Color - MAIN COLOR OPTIONS

Frame Size

Qty:

Description

Technical Specs

TAILORED TO PERFORM EVERYWHERE
The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.

Geometries

CF	CC	L	I	A[°]	B[°]	F	P	T	D	R	G	WB	REACH	STACK
410	470	530	125.6	74.5	70.25	603.9	430	115	72	55	405	1023.5	368.4	553.2
440	500	545	137.8	74	70.5	614.5	430	130	72	55	405	1034.2	376.1	568.3
470	530	558	148.3	73.75	70.75	625.8	430	150	67	55	405	1047	383.7	583.2
490	550	570	156.2	73.5	71.75	621.9	430	160	67	50	405	1043	390.4	598.4
510	575	587	168.1	73	72	631.9	430	175	67	50	405	1053.1	398.2	613.6
545	600	607	180.4	72.5	72.25	644.3	430	195	67	50	405	1065.5	406.9	633.7

NEW GREVIL F5 SRAM RIVAL XPLR AXS Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

Specs & Information

SOLO DYNAMICS
The aerodynamics of the new Grevil F are designed to excel in long-distance solo races. Precisely for this reason we have developed all the accessories to be as aerodynamic as possible to save as many watts as possible. This new concept of accessories to facilitate solo racing includes: the TT gravel bars, the frame bag, the racing bento, the toolbag, and for ultra-long distances, the rack bag.

FRAME BAG
Designed to be both aero and attach securely, the new frame bag uses a magnetic system from Fidlock to attach to the frame. This lightweight solution ensures total balance and reliability over rough terrain. Ease of use allows fast access for quick service stops during races.

GRAVEL TT BARS
Clamped solution on rounded handlebar Jaguar.
Adjustable reach and stack on extension and pads.
Computer mount integrated into the extension.
Adjustable tilting.

ADAPTIVE SEATPOST
The new adaptive seatpost has a longitudinal flex of 10 mm, is lighter and more efficient when it comes to absorb vibration.

TWIN ARMS
The new TWIN ARMS seatstays solution works in conjunction with the adaptive seatpost to absorb vibration, ensuring exceptional traction even on the roughest trails.

DOWN TUBE
The down tube has been specially designed to improve aerodynamic efficiency when using 750 ml bottles. The inclusion of storage space, easily accessible without having to remove the bottle cage, to fit an integrated tool bag inside the down tube removes the need to use a saddle bag, which also improves aerodynamics to save precious watts.

NEW ONDA FORK
Elegantly shaped with a sleek profile and calculated curvature, the Onda Fork enhances the ride quality with its compliance and improves handling thanks to its reduced weight compared to the previous Grevil F.
