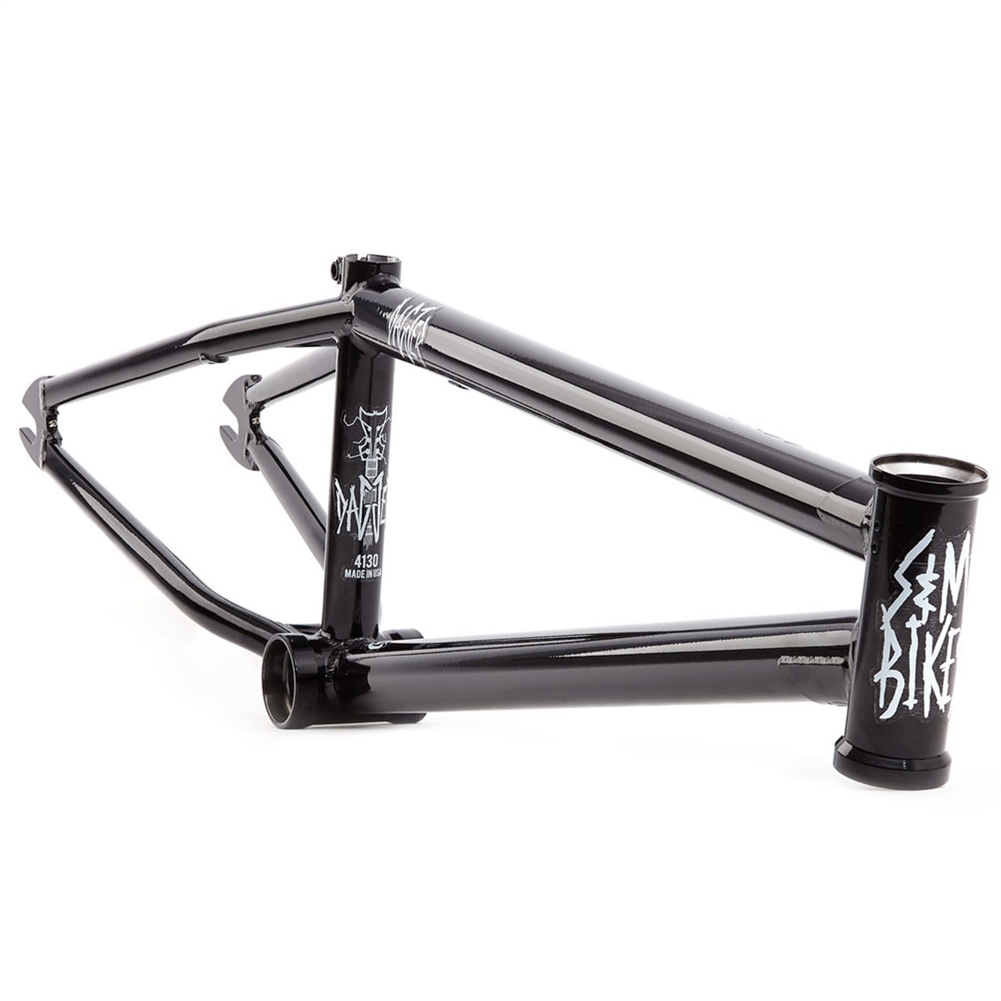

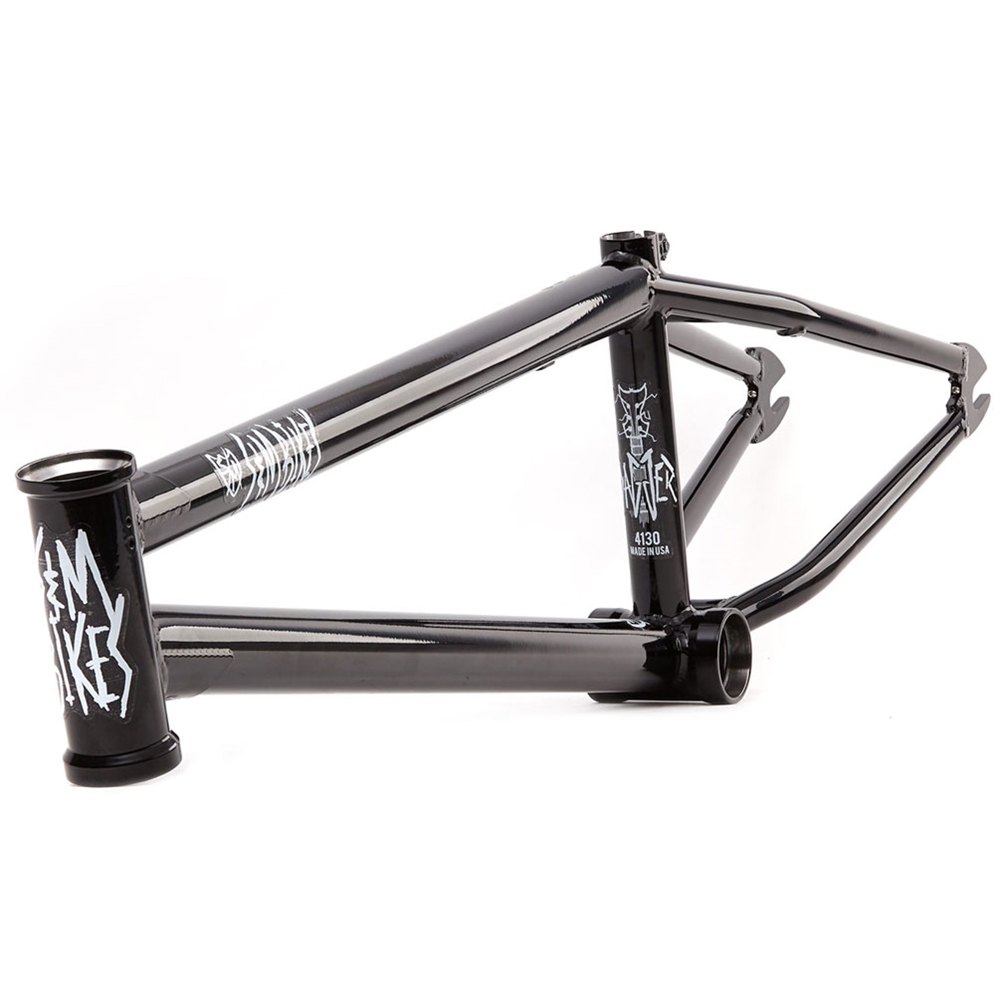

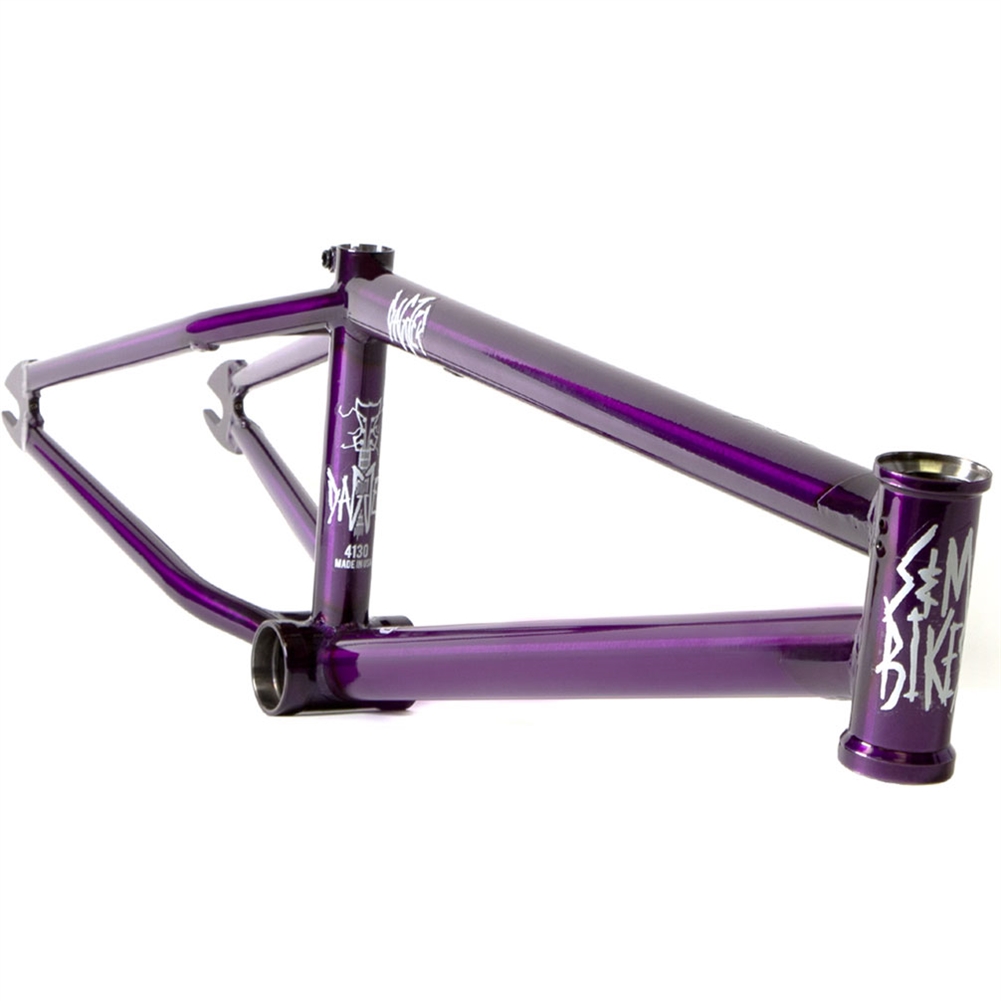

S&M Bikes Dagger Frame
S&M Bikes Dagger Frame

Additional Photos:



Our Price: $409.95


Product Code: SMBIKES19-DAGGER-FRAME

Frame Size


Choose Your Color



Qty:
Description

S&M Bikes Dagger Frame: Our ultra-responsive park frame. With a low standover and BB, 75.3° head angle and short rear end with chain tensioners, the Dagger is compact and nimble.

TOP TUBE LENGTHS: 20.5″, 20.75″, 21″
REAR END LENGTH: 12.8″ – 13.6″
HEAD TUBE ANGLE: 75.3°
HEAD TUBE STYLE: Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE: 71°
SEAT CLAMP: Integrated
SEAT POST SIZE: 1″ (25.4mm)
BB HEIGHT: 11.6″
BB STYLE: Mid
STANDOVER HEIGHT: 7.25″
BRAKE MOUNTS: Thread-On 990 (Mounts sold separately)
DROPOUTS: 14mm Slot, 4Q-Baked, Integrated Chain Tensioners
GYRO TABS: Removable
WEIGHT: 20.5”: 4.90lbs / 2.22kgs
20.75”: 4.95lbs / 2.24kgs
21”: 5.00lbs / 2.26kgs
TUBESET: Double-Butted True Temper 4130 CrMo
