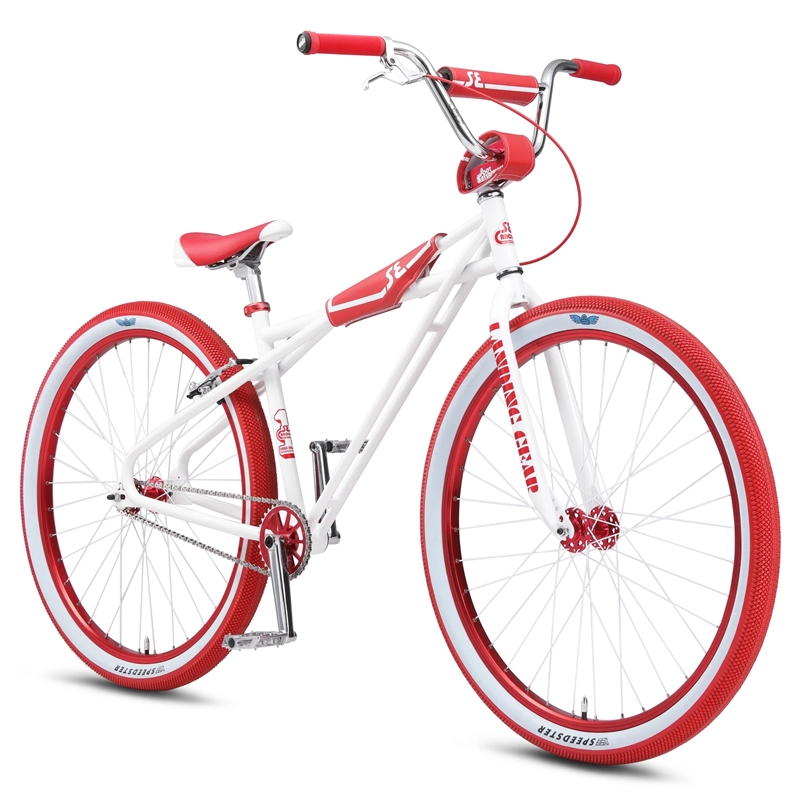

The 29" Quadangle Looptail is a true classic and one of the most sought after SE bikes ever made! The frame is built with100% Cr-Mo steel tubing and features a unique “quad angle” frame shape and a classic double downtube—a legendary design created by SE and instantly recognizable. The sealed bearing SE Mohawk hubs paired with double-wall rims provide a smooth ride, and the 29" x 2.10" Speedster tires will roll fast when you’re putting in the miles. The new SE Captive seat (with custom bottle opener brace) provides a secure and comfortable feel for wheelies or just cruising along. With authentic ODI Longneck grips and an SE Racing padset, this bike screams classic radness.
- SPECIFICATIONS
| Frame | 100% Cr-Mo Tubing, Classic Double Downtube Design, Internal Cable Routing, Looptail Rear End, heat Treated Retro Dropouts, Limited Edition & Individually Numbered on the Inside of the Rear Dropout | |
| Fork | Landing Gear, Full Cr-Mo | |
| Crankset | SE TSC Cr-Mo 3-pc Lightweight Cranks, Non-pinch bolt, Full Wrap Pedal Bosses, 170mm, Sealed American Bottom Bracket, 141mm Spindle Length, 19mm Spindle Diameter, 33T Alloy SE Quad Sprocket | |
| Pedals | X-Pedo Low-profile Platform w/ Removable Pins | |
| Chain | KMC S1 | |
| Wheelset | SE Mohawk Sealed Bearing Flip Flop Hubs, 36H High-Flange Alloy, Double-wall Rims w/ Eyelets, 15T 9-Pawl, 108 Clicks LOUD Freewheel, Stainless Spokes | |
| Tires | Vee Tire Co x SE Racing Speedster, 29" x 2.10" Front & Rear | |
| Brakeset | Tektro 855AL V-Brake, Linear Cable | |
| Brake Levers | Tektro 316A, 2-Finger Alloy | |
| Headset | Tange 1-1/8" Threadless | |
| Handlebar | Cr-Mo Power Wing Cruiser Bar, 28" x 7", 10° Backsweep, 1° Upsweep | |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach | |
| Grips | ODI Long Neck Grips, Made in USA, w/ ODI End Plugs | |
| Seat | New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace | |
| Seatpost | Micro-Adjust Alloy, 27.2mm | |
| Seat Clamp | SE Racing Champ Clamp, Alloy, 29.8mm Inner Diameter | |
| Accessories | SE Racing Padset, Alloy Valve Caps |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Specs & Information
- Full Cr-Mo Quadangle frame with a double downtube, Looptail rear end, internal cable routing, and retro dropouts
- Individually numbered on the inside of the rear dropout
- Full Cr-Mo Landing Gear forks
- Cr-Mo Power Wing cruiser bars
- Double-wall rims with sealed bearing high flange SE Mohawk flip flop hubs
- 15T LOUD freewheel with 9-Pawls and 108 clicks
- SE 3-piece TSC non-pinch bolt cranks with alloy SE Quad sprocket
- Authentic ODI Longneck grips, made in the USA
- Vee Speedster x SE Racing 29” x 2.10” tires
- NEW SE Captive Seat with concave design for ultimate hold and comfort
- SE Quadangle padset
|
|
|
|
|
|
|
