Specs & Information
| MOTOR | | Motor Type: | PMSM | | Mounting Position: | Mid | | Weight / Motor External Diameter: | 9.55kg / 155mm | | Motor Axial Length: | 130mm | | Peak Efficiency: | 98% | | Cooling Method: | Air-Cooled |
CONTROLLER | | Controller Type: | FOC | | Dimensions: | 160mm x 142mm x 79mm | | Peak Efficiency: | 98.50% | | Power Modes: | Eco, High, and Sport |
MOTOR POWER SYSTEM | | Rated Voltage: | 72V (DC) | | Rated Torque / Peak Torque: | 95115Nm | | Motor Shaft Output Torque @ 1000RPM: | 460Nm | | Rated Rotation Speed: | 5400rpm | | Peak Efficiency: | 97% | | Range of Efficiency (≥80): | 3Nm - 45Nm |
TRANSMISSION | | Gear Ratio: | 13:51 | | Transmission: | Motorcycle Chain & 420 Drive Chain | | Model: | German Continental Brand, 8M CXA |

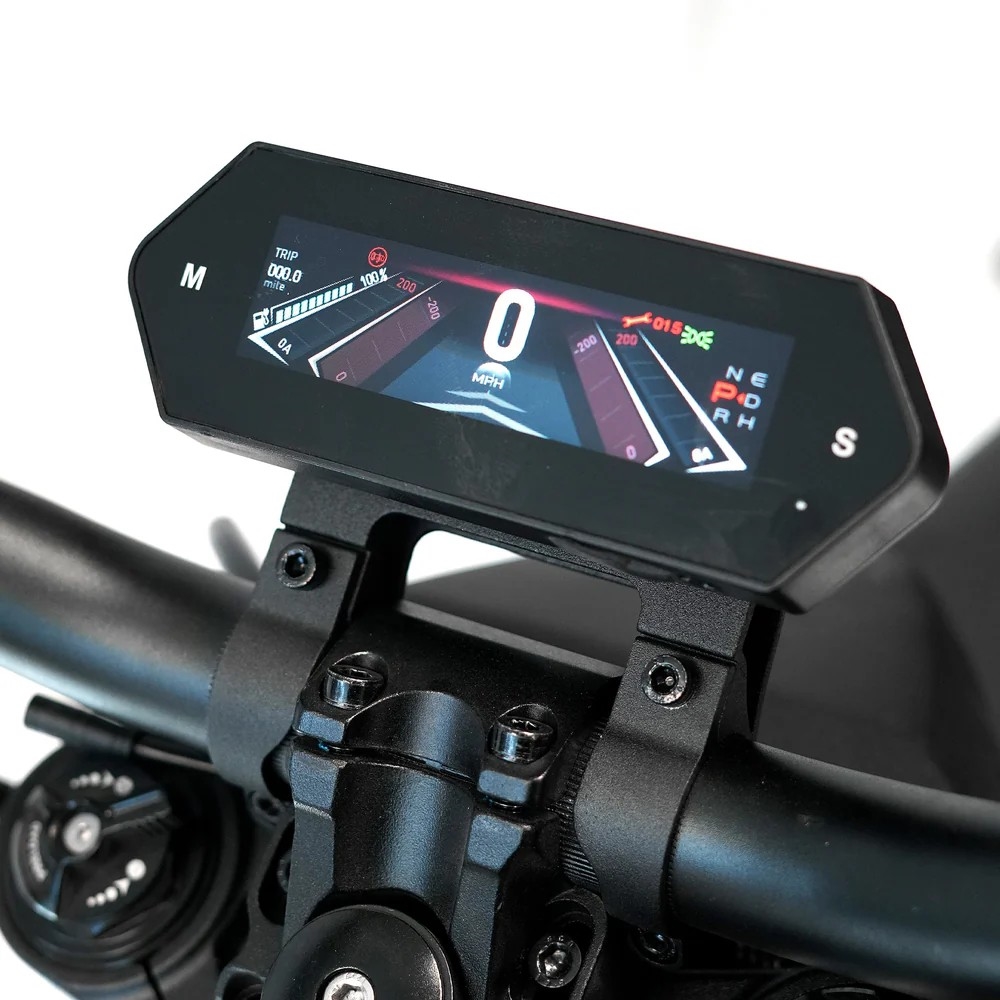

ELECTRICAL COMPONENTS | | Horn: | CQC | | Battery: | 72V 40AH Lithium Battery with 176 LG Cells | | Battery Life Time: | 500 Cycles | | Battery Charge Level: | Integrated Battery LCD Display | | Charger: | 9A | | Charging Time: | 3.5 Hours | | USB Connection: | Type C | | Speedometer: | TFT | | LED Headlight & Rear Light: | Yes |

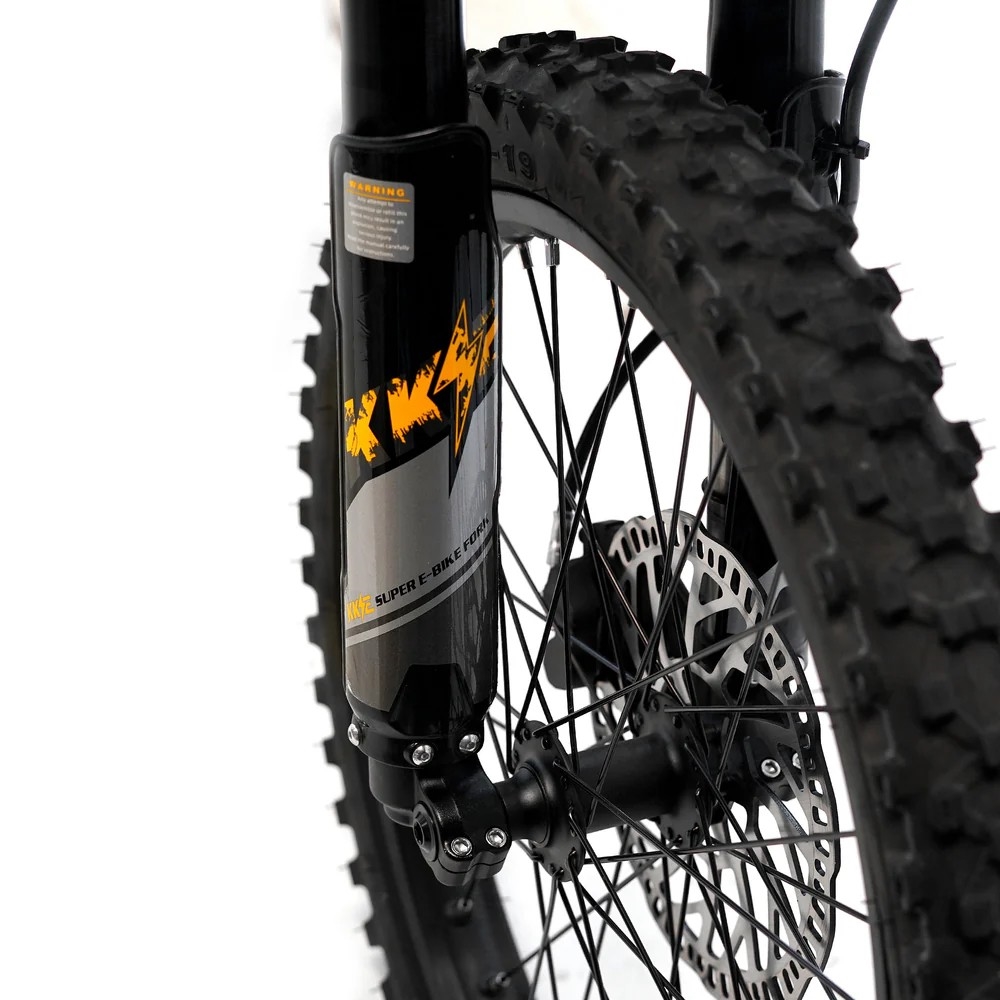

FRAME DETAILS | | Chassis - Swing Arm Material: | No.6061 T4&T6 Aluminum | | Chassis Construction Method: | Forged by 3000 Tons of Pressure | | Chassis Surface & Color Processing: | Baked Paint | | Front Suspension: | Inverted Suspension Fork with 200mm Travel | | Rear Shock Absorber: | KKE Suspension Link System | | Wheel Type & Size: | Front/Rear :1.4-19 , 1.6-19 Alloy Hubs |
DIMENSIONS | | Ground Clearance: | 270mm | | Wheelbase: | 1250mm | | Seat Height: | 85cm | | Vehicle Dimensions: | 1880mmX805x1130mm |
DRIVE | | Top Speed: | 90km/h | | Net Weight | 73kg | | Rear Sprocket | 51T | | Side Stand | Yes with Kill Switch | | Battery Usage | 600 Uses | | Carry Capacity | 320lb |
|
|
|
|
|
|
|
